Description

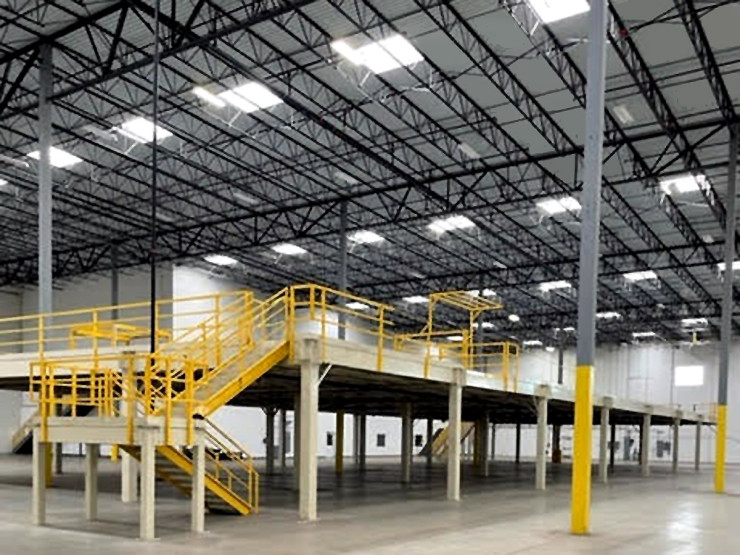

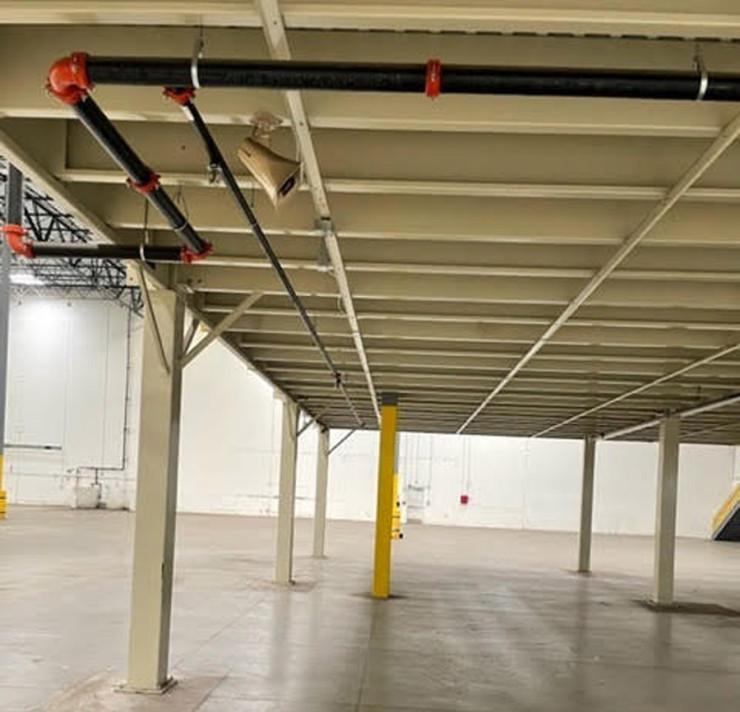

Free-standing mezzanine
Vertical column:
11’ tall
with 10” x 10” square post, column.
The plate is 15”
x 15” square. ¾” thick.
59’1” x 161’9” = 9600 square feet.
We have lots of pics standing and KD. KD is current
pictures.
All material looks good.
2 stairways included.
Beams:
20’8” x 15” x 3”
20’3” x 15” x 3”
23’ x 15”
271” x 15” x 3” with
1.5” lip.
281” or 279” x 15” (Might be sag of the measuring tape)
Main beam: 293” long x 18” wide x 3/16” thick. (295”? sag of measuring tape)
Bolted to another beam.
A 3” plus 5” thick bolted together.
The lips on the beam are recessed before beginning.
